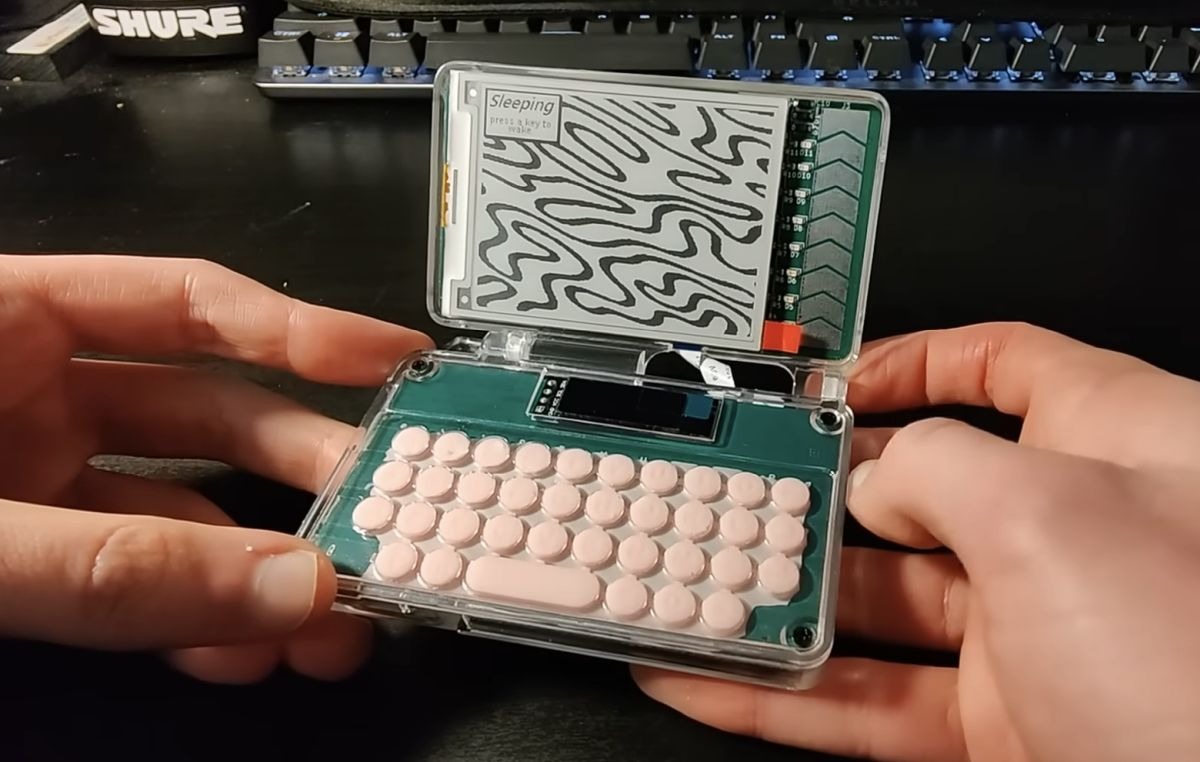

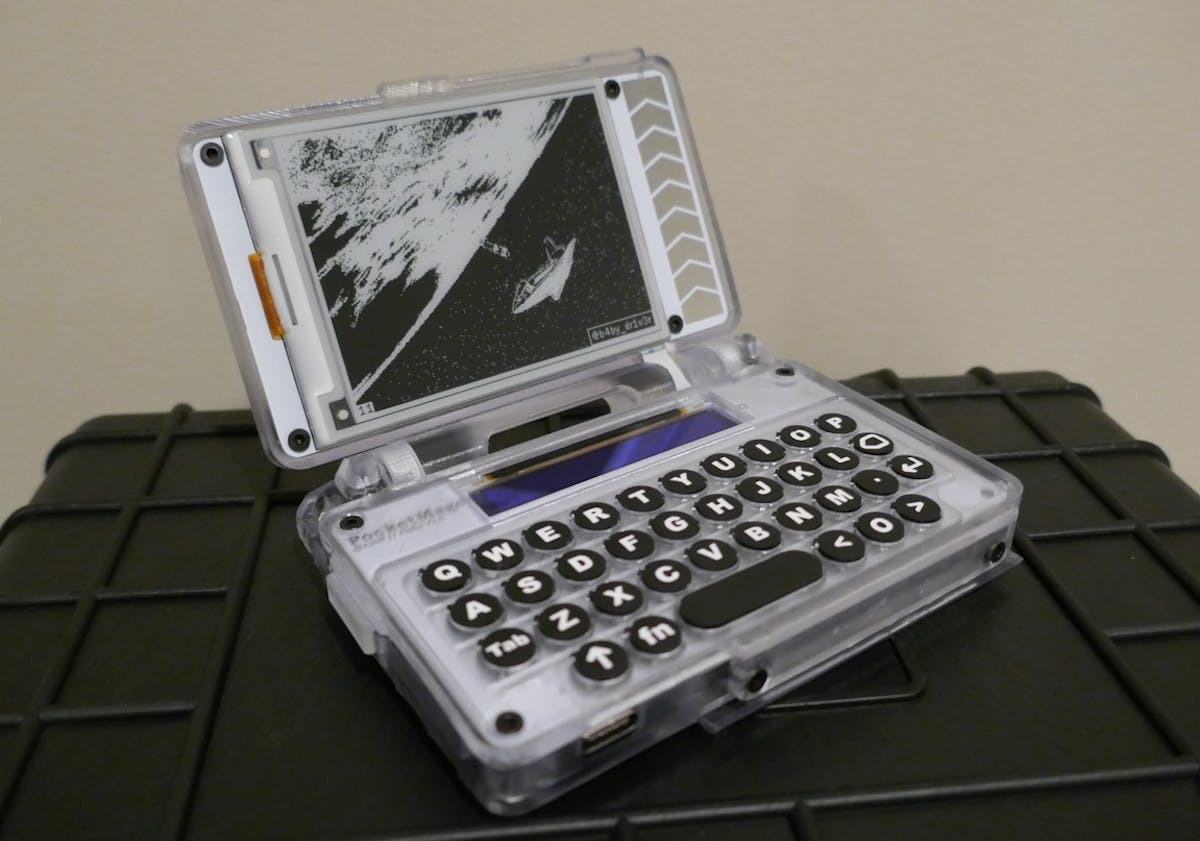

The PocketMage PDA is a tiny tool that looks as if a touch laptop. But with a 3.1 inch E Ink show and a tiny keyboard simply big sufficient for thumb typing, this work-in-development tool might be higher acceptable for jotting brief notes than greater disturbing tasks.
And in case the call wasn’t a giveaway, it is designed for quite simple operation: it is a throwback to an in advance time while smartphone’s were not a element but and PDAs (private virtual assistants) prevailed as digital devices for dealing with your calendar, contacts, tasks, and now no longer a whole lot greater. But the PocketMage PDA provides a few especially contemporary-day touches.
For instance, device is powered via way of means of an ESP32-S3 WROOM1 microprocessor and functions displays: a 3.1 inch, 320 x 240 pixel 1-bit SPI E Ink number one show and a 1.eight inch, 256 x 32 pixel 1-bit SPI OLED show above the keyboard. Both are black and white screens, however the OLED show ought to provide a faster refresh price that could are available in on hand for conditions wherein you can now no longer need to cope with the lag related to E Ink.
OIther functions consist of a RTC module, an growth port with GPIO, SPI, I2C, GND, and electricity pins, and a piezo buzzer.
With simply 8MB of RAM and 16MB of flash storage, this device is not designed for complicated tasks. But there’s a microSD card reader with guide for playing cards as much as 2TB, this means that you can kind out quite a few textual content-primarily based totally notes.
The developer at the back of this assignment continues to be growing software program for the assignment, however there may be already a “easy GUI for navigating among apps” and some simple apps along with a record manager, textual content editor, calendar, tasks, and magazine apps. Users also can increase their very own apps.
Since the ESP32-S3 chip helps WiFi and Bluetooth, there are plans to finally upload guide for functions like synchronizing the calendar and notes with Google Calendar and Google Docs in addition to including guide for Bluetooth keyboards. The roadmap additionally consists of hardware ad-ons for functions like a battery growth guide and an LoRa/Meshtastic upload-on module.
You can discover greater information about the assignment withinside the PocketMage PDA GitHub repository or at developer Ashftf’s YouTube page, wherein he is been documenting the layout process. Once the layout and software program are finalized, the developer plans to launch the supply code for absolutely everyone who desires to construct their very own, however there also are plans to promote kits for parents who’d instead purchase the whole thing from one place.
